Product Description
-

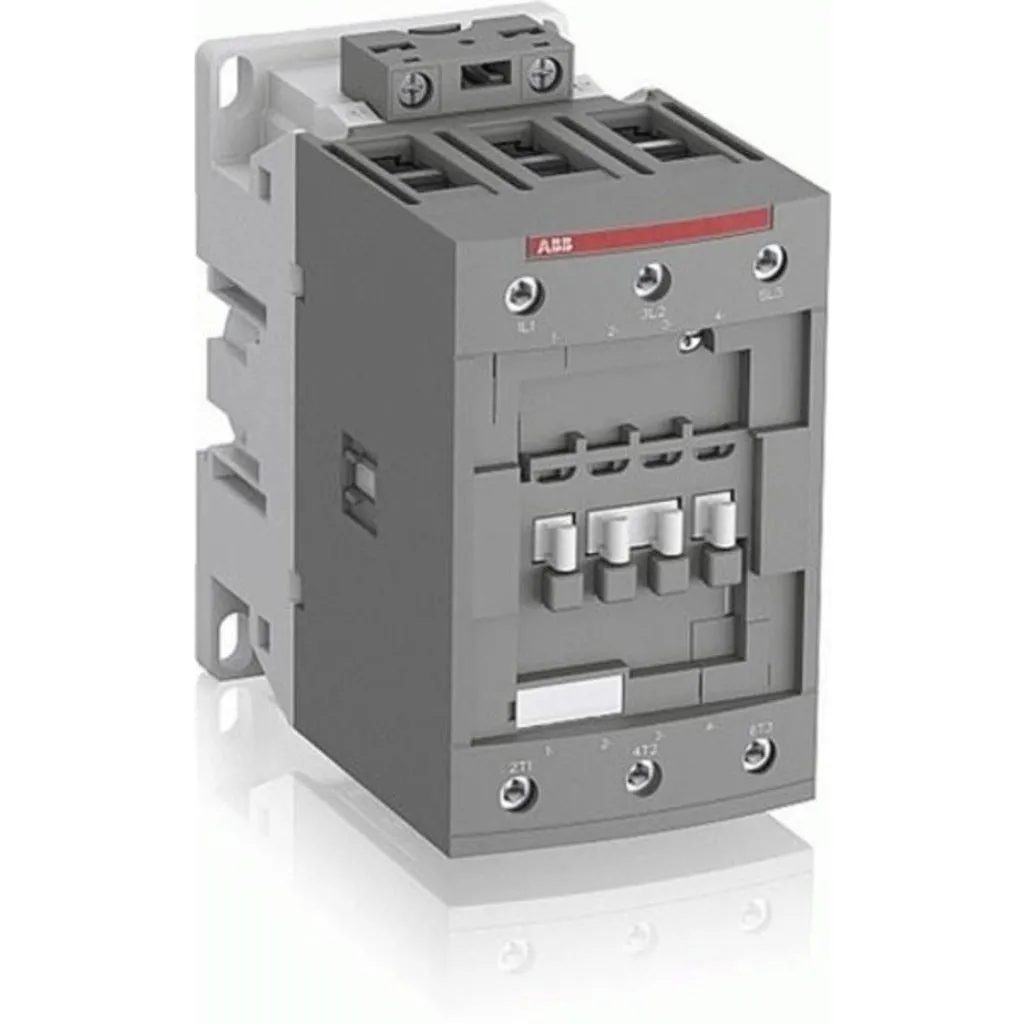

AX18 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC
-
These contactors are of the block type design with: – 3 main poles and 1 built-in auxiliary contact
-
Control circuit: AC operated – add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
-
Number of Main Contacts NO : 3
-
Number of Main Contacts NC : 0
-
Number of Auxiliary Contacts NO : 0
-
Number of Auxiliary Contacts NC : 1
-
Rated Operational Voltage : Auxiliary Circuit 690 V , Main Circuit 690 V
-
Rated Frequency (f) : Auxiliary Circuit 50 / 60 Hz , Main Circuit 50 / 60 Hz
-
Rated Impulse Withstand Voltage (Uimp) : 6 kV
-
Maximum Mechanical Switching Frequency : 3600 cycles per hour
-
Terminal Type : Screw Terminals
-
Product Net Width : 44 mm
-
Product Net Depth / Length : 74 mm
-
Product Net Height : 74 mm
-
Product Net Weight : 0.326 kg
- Product Specification
|
Rated Voltage |
Product Id |
Model |
|
24 V |
1SBL921074R8101 |
AX18-30-01 24V AC 50/60Hz |
|
110 V |
1SBL921074R8401 |
AX18-30-01 110V AC 50/60Hz |
|
220-230 V |
1SBL921074R8001 |
AX18-30-01 220-230V AC 50/60Hz |
|
400-415 V |
1SBL921074R8601 |
AX18-30-01 400-415V AC 50/60Hz |
