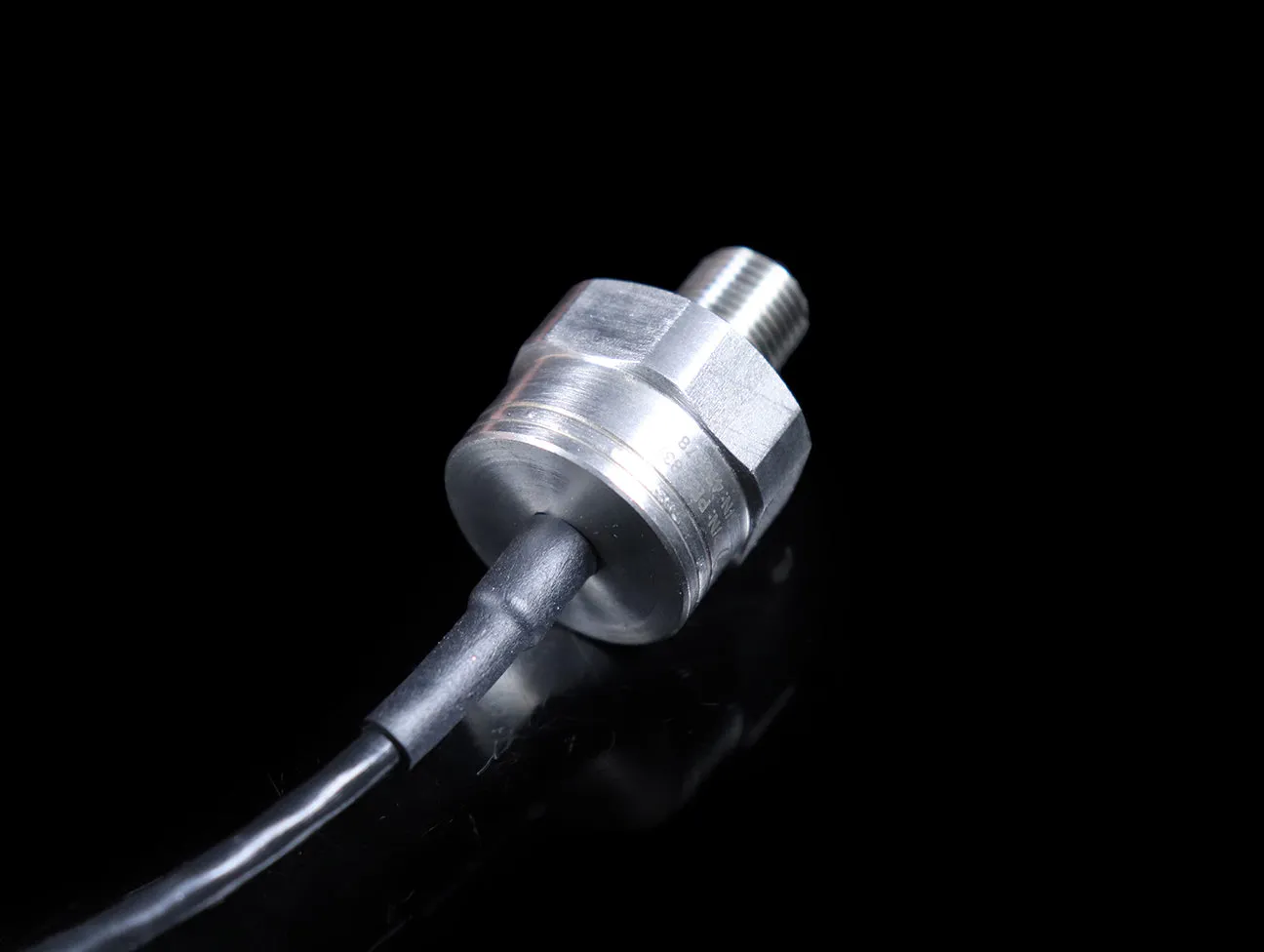

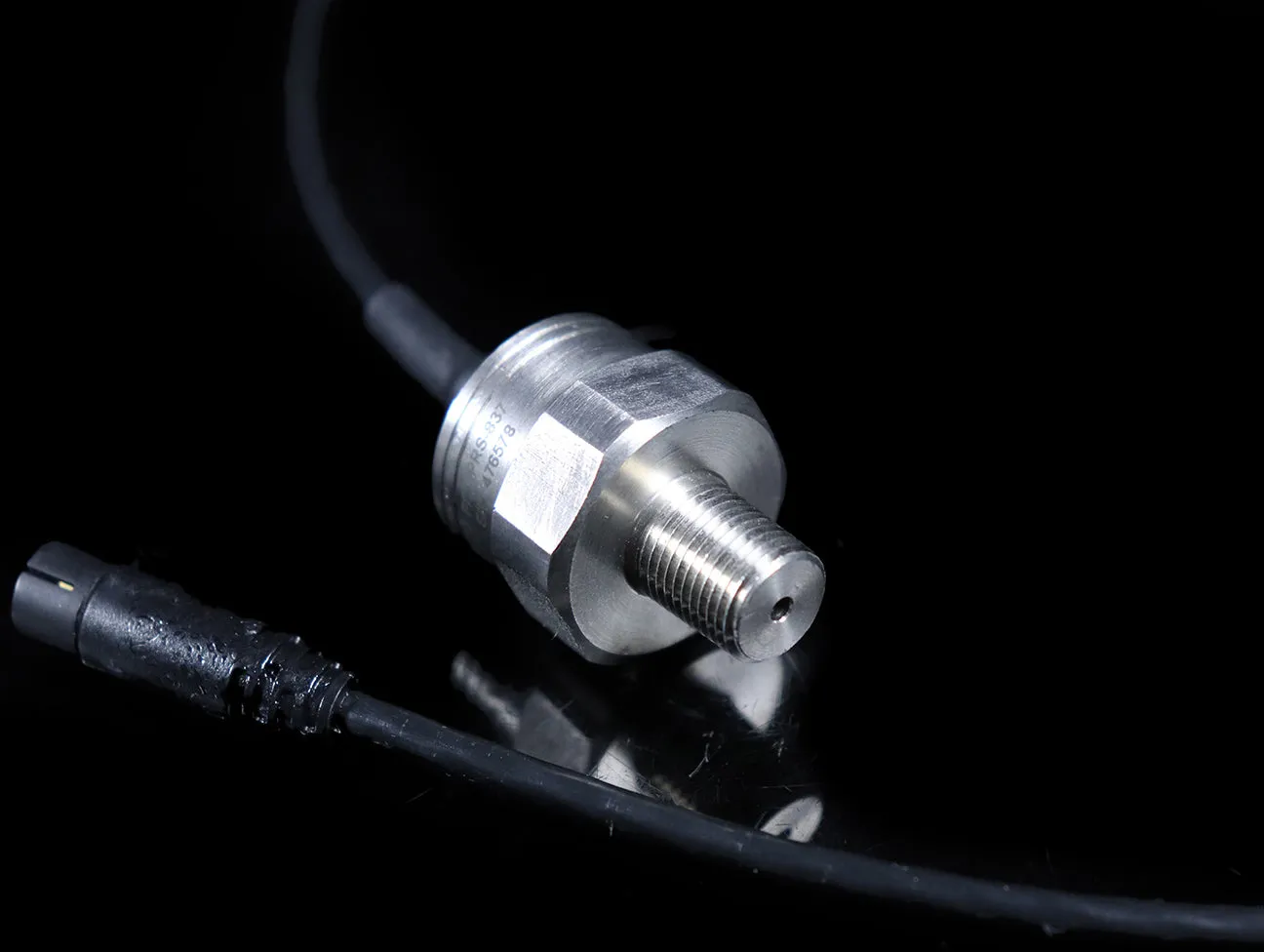

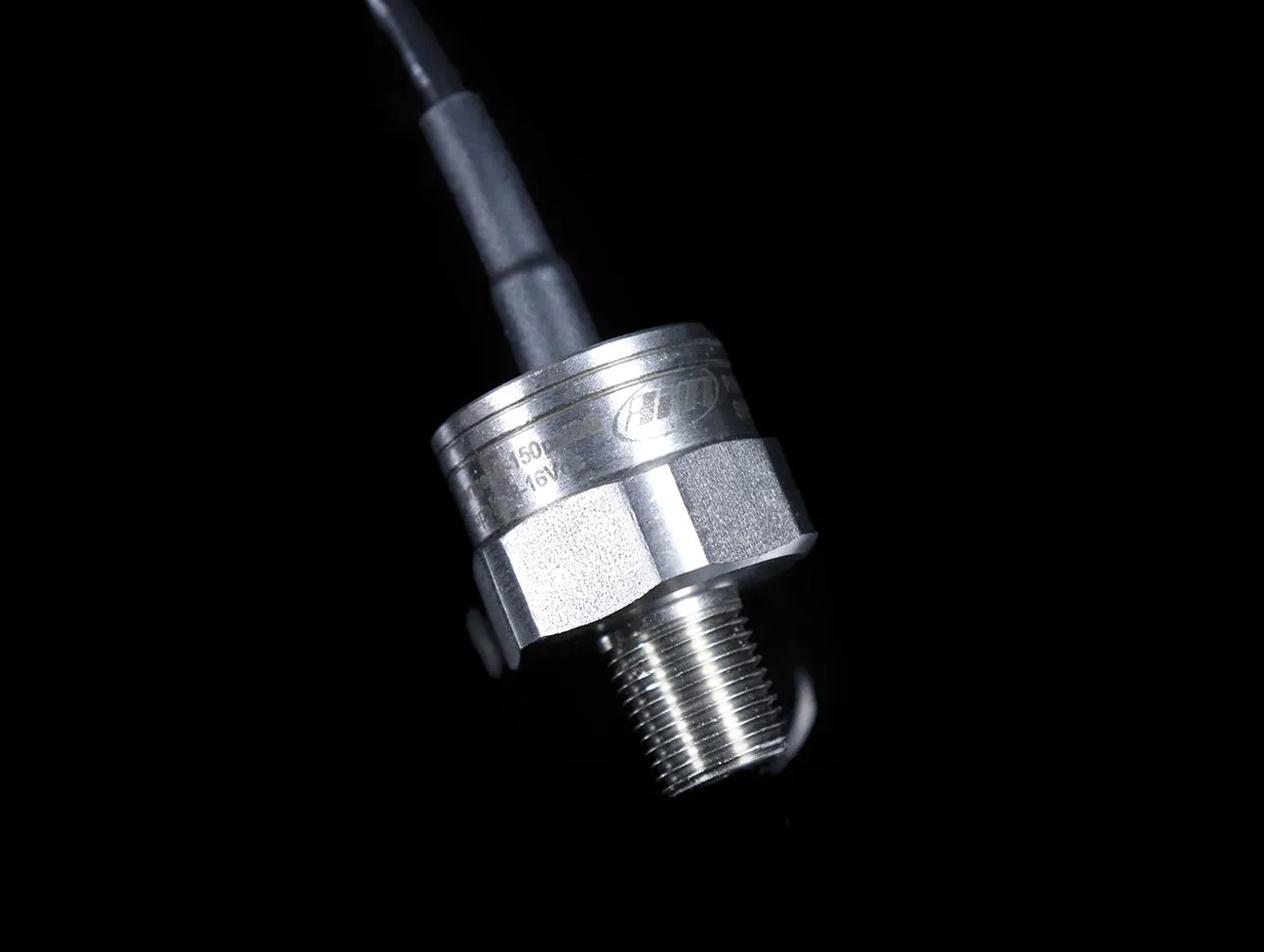

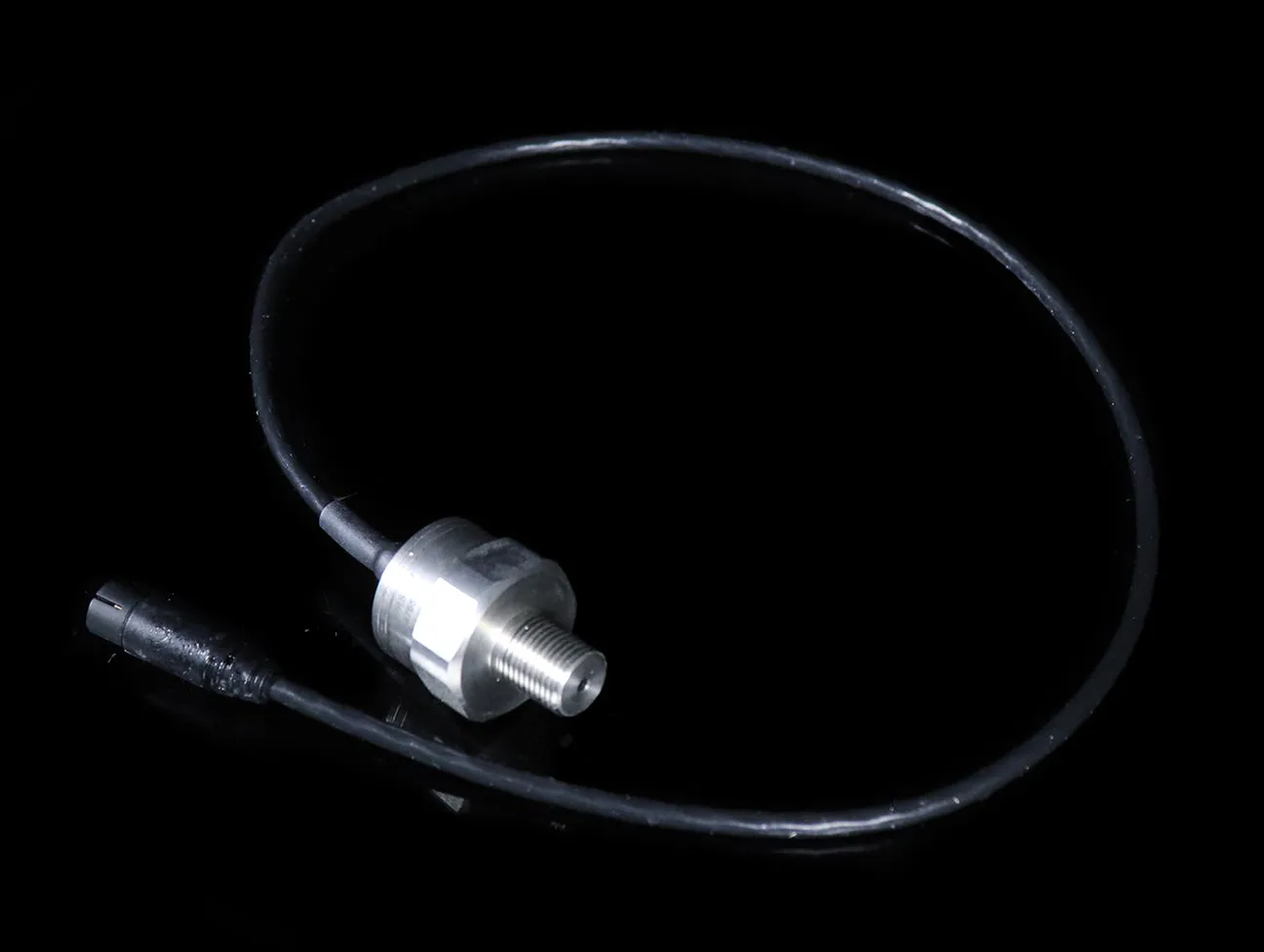

The AIM Sports 0-150 psi sensor is suitable for measuring oil pressure or fuel injection system pressure. It is more robust than the MSI and VDO-style pressure sensors, but it should still be isolated from engine heat and vibration. It is compatible with all AiM MyChron, MXL, EVO3, and EVO4 automotive applications. 1/8 NPT male threads.

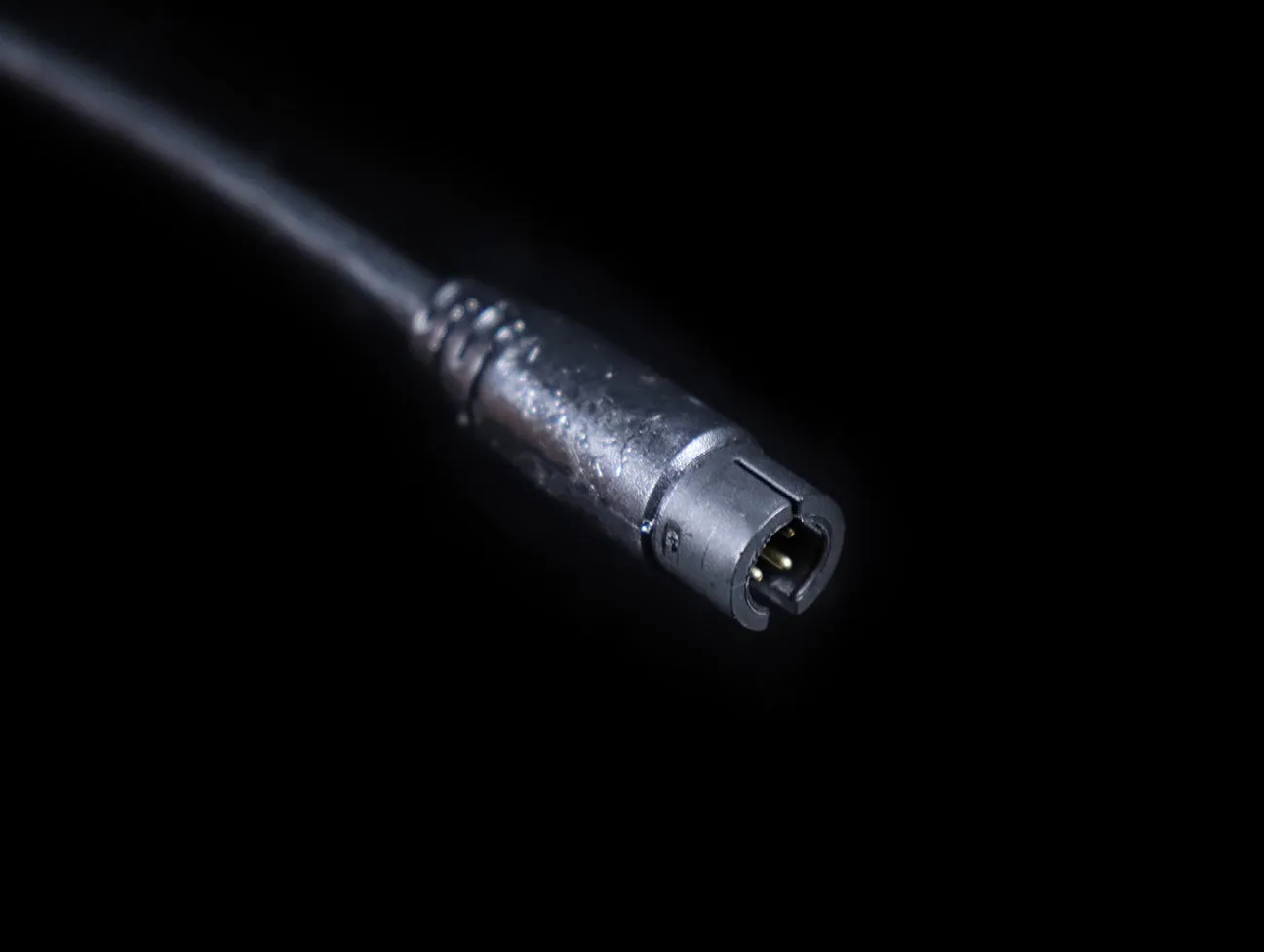

This sensor has the 719 (four-pin plastic push-on type) connector. Use a AiM 719-719 Patch Cable (Part No. MC-211) to connect to any AiM MXG, MXM, MXS, MXL series or MyChron3 Auto dash except XG-Log. EVO4 and XG-Log require a 712-719 Patch Cable (Part No. MC-210, sold separately).
* This sensor has a 2000 Ohm resistor between connector pins 1 and 4. The AiM Rotax (Kart) Water Temperature Sensor (Part No. AIM-MC-040) is visually identical, but it does not have this resistor and is not interchangeable.
Sensor specs
- Can be used as an Oil or Fuel pressure sensor
- End 1: 719 male 4 pin push-on
- End 2: 1/8" NPT
- Pressure Range 0-150 psi
- Operating temperature: -20 to 135°C
- Weight: 34 grams
