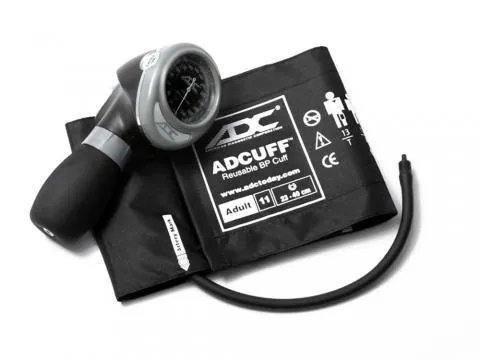

The 703 series features:
◾ Revolutionary palm style manometer (#804) with integral latex-free bulb and trigger style air release valve for one-hand convenience
◾ Precision crafted 300mmHg Japanese engineered movement tested to 50,000 cycles
◾ Movement housed in a zinc cage that suspends within the polymer housing for enhanced shock resistance
◾ Ambidextrous infinite control trigger release air valve
◾ Adcuff™ nylon cuff with ADCs proprietary Size Guide™ marking system, prevents mis-cuffing
◾ Quick release luer slip connector
◾ Complete with leatherette carrying case with self repairing nylon zipper
◾ Assembled, inspected, and packaged in the U.S.A. from foreign components
◾ Meets or exceeds ANSI/AAMI/ISO 81060-1
Sizes:
Infant: 9-14 cm
Child: 13-19.5 cm
Small Adult: 19-27 cm
Adult: 23-40 cm
Large Adult: 34-50 cm
Thigh: 40-66 cm
Specifications:
Sphyg Type: Palm
Gauge: 804
Gauge Warranty: Lifetime
Sphyg Accuracy: /-3mmHg @ 50ºF(10ºC) - 104ºF(40ºC)
Sphyg Accuracy: at extended temperature range /-3mmHg or 2% whichever is greater @ <50ºF(10ºC) and >104ºF(40ºC)
Storage Temp: -4ºF (-20ºC) - 131ºF(55ºC)
Valve Type: Integral
Number of tubes: 1 Tube
Cuff type: ADCUFF
Inflation Warranty: 3 Year
Zipper case: 880
The ADC Difference:
◾ Latex-Free: Contains NO latex.
◾ Size Guide Marking System: Comprehensive cuff markings that promote proper cuff positioning and prevent mis-cuffing.
◾ Luminescent Dial: Graduation marks, numbers & indicator needle are luminescent for easier reading in low light.
◾ Extended Scaleplate Graduation marks that extend beyond the indicator needle to eliminate parallax error.
◾ 3 Year Warranty: Warranty extends to the original retail purchaser, commences with date of delivery and extends for a period of three years.
◾ Lifetime Calibration Warranty: Manometer will be recalibrated free of charge for LIFE.
◾ Domestic Content: Inspected, Assembled & Packaged in the USA.
