Product Details
＋

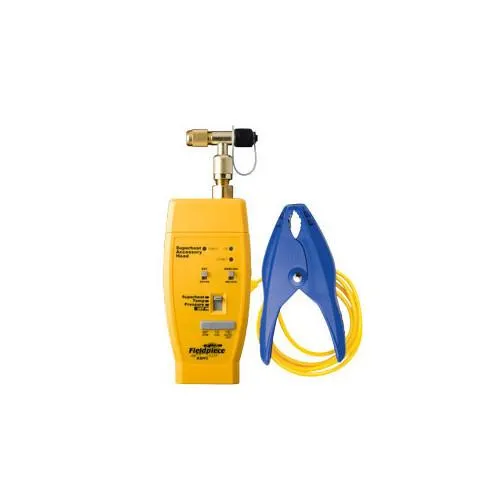

The ASH3 calculates actual superheat in real time using built in P/T charts. It can also be used to measure liquid line or high side line temperature and pressure for other diagnostic. Use it to get actual superheat on R-22 and R-410A fixed orifice systems and on TXV / TEV regulated systems. Use the “T” fitting to charge to actual superheat by putting the ASH in-line between your refrigerant bottle and the system.
Features
- Measures suction or liquid line pressure and temp
- Calculates superheat for R22 and R410A
- Easily calibrates to current atmospheric pressure
- Includes the ATC1 pipe clamp thermocouple. Jaw Opening to 35mm
Specifications
- SKU ASH3-Clearance
- BrandFieldpiece
- Shipping Weight1.0000kg
- Shipping Width0.150m
- Shipping Height0.200m
- Shipping Length0.150m
- Shipping Cubic 0.004500000m3
- Unit Of Measure ea
- Assembled Length 0.150m
- Assembled Height 0.200m
- Assembled Width 0.150m
Can be used with the HG2 System Analyser for Temperature or Superheat with this ASH3 Accessory Head - Make it Wireless with the EH4W kit.
Works with HS26, HS33, HS35, HS36, EHDL1, EH4W, LT17AW
Warranty
1 - Year Manufacturers Warranty from Date of Purchase
Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
