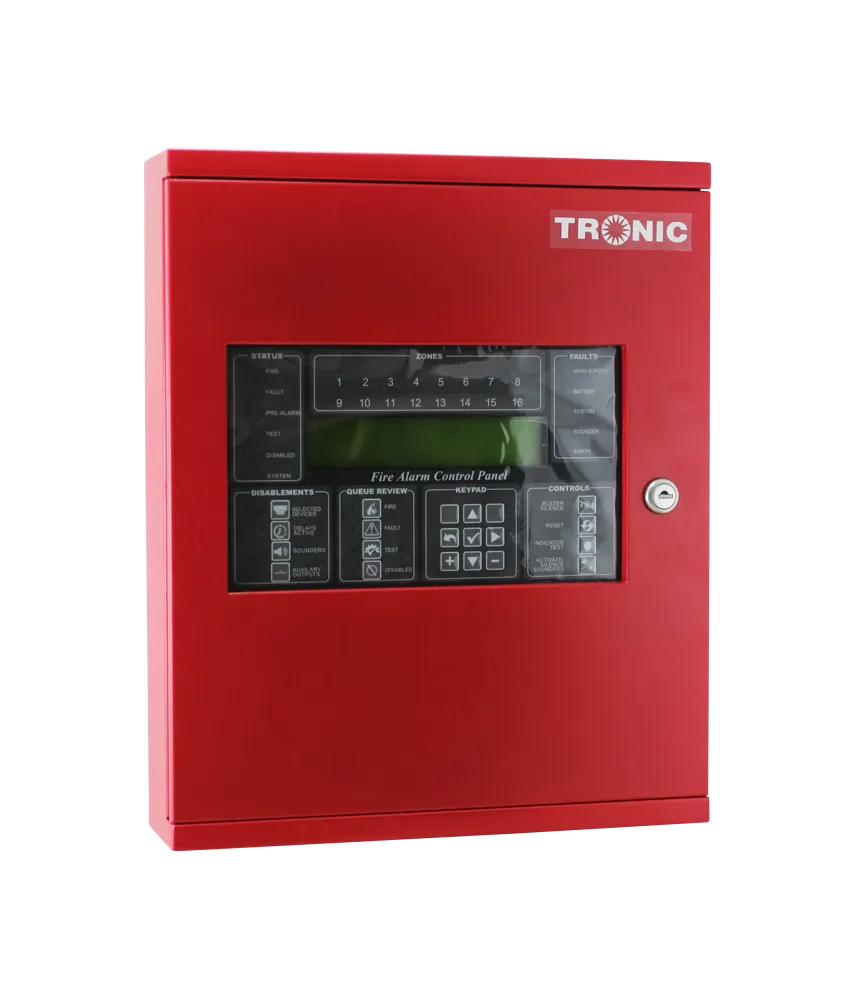

The FP 6004 analogue addressable control and indicating equipment forms the central part of a re detection and alarm system. The fully networkable 2-wires FP 6004 is compatible with TRONIC addressable devices and can also be connected to non-addressable devices when used with addressable input modules. Default configuration programming facilitates out-of-box installation and rapid commissioning. A powerful and versatile cause-and-effect PC-based programming tool enables rapid customization with software for sites that require special operating features. The FP 6004 comes standard with features that allows flexibility and expandability.

Features:

• Single loop, expandable to 2-loops, or 2-loops available
• Networkable, up to 4 panels
• Supports up to 125 addressable devices per loop
• Automatic device detection on start-up
• Automatic device type-code verification
• 2 independently programmable non-addressable sounder output circuits
• 2 programmable relay outputs
• Faulty relay output
• Remote disable and evacuation inputs
• Backlit LCD display providing 4 rows of 40 characters
• 16 zone re alarm LED indicators
• 3000 event history log
• Rugged metal enclosure in RED

Warranty:

1 Year
