Product Details
＋

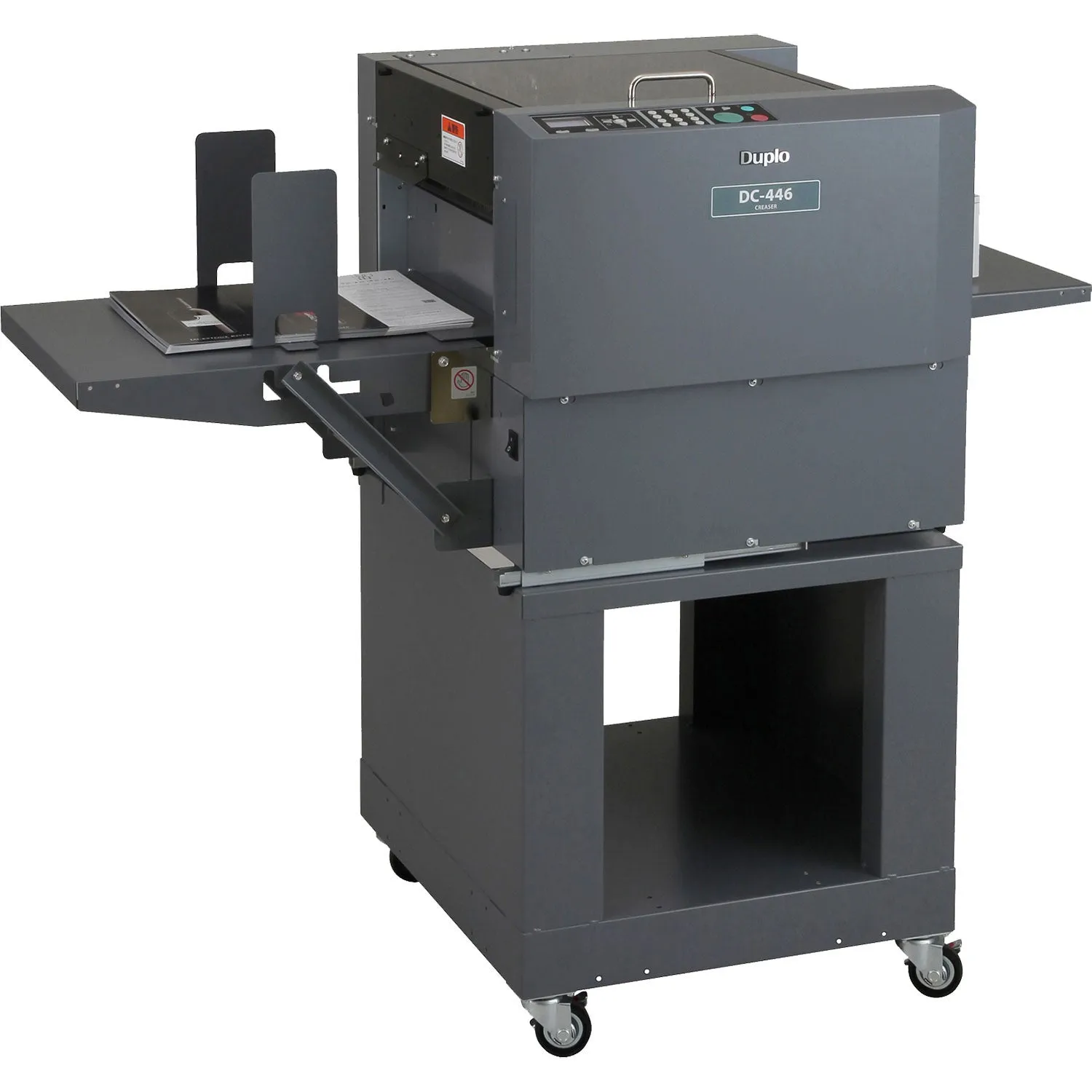

- The Duplo DC-446 is a fully automated, highly productive creasing machine ideal for creating greeting cards, brochures, flyers, CD/DVD covers and menus from digitally colour printed presses.
- **CONTACT US DIRECT FOR OUR BEST PRICE**
- The DC-446 can also have additional modules added to allow it to become a slitter & cutting machine.
- This machine can handle A4 sheets at 60 a minute.
- Ability to crease up to 20 times in 0.1mm increments.
- Touch screen set up panel stores and recalls up to 30 jobs saving time on repeat product types.
- A 100mm feed tray and 110mm delivery tray enables the user to leave the DC-446 unattended.
- The suction feed removes the risk of marking with an optional air knife to help separate the sheets ahead of feeding if static is an issue.
- Skew and shrinkage adjustments compensate for any image placement issues.
- Paper Type: Uncoated paper, coated paper, laminated paper Feeder C
- apacity: 100mm (exit tray 110mm)
- Feeder Type: Top Feed/ 8 Belt Suction
- Feeder Speed:
- A4 SEF (1 Crease) @ 60 sheets per min
- A4 SEF (2 Creases) @ 31 sheets per min
- A3 SEF (1 Crease) @ 39 sheets per min
- A3 SEF (2 Creases) @ 29 sheets per min
- A$ LEF perforate or slit only @ 92 sheets per min
- Number of Creases: Up to 20 creases per document across the paper direction
- Crease Depth Adjustment: 3 steps (from control panel)
- Tolerance of Crease: /- 0.3mm Input Paper Size: Min- 140 x 150mm, Max - 330mm x 670mm
- Input Paper Weight: Min - 110gsm, Max - 350gsm..
- Paper Curl within /- 3mm Memories: 30 Minimum
- Repeat Distance: 0.1mm

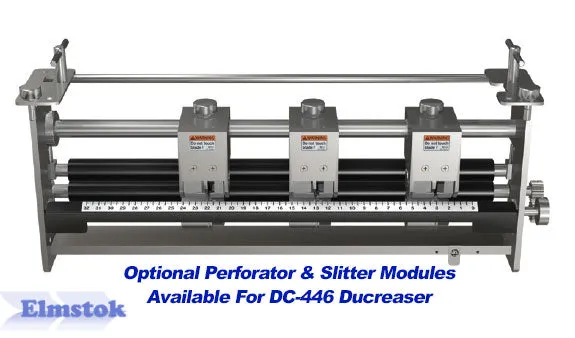

- Options: Perforators (15 teeth/inch),Slitters, Air Knife, Double Detection, Long Paper Tray, Cabinet.
- Dimensions (L x W x H): 1262 x 618 x 573mm (1090 with optional cabinet)
- Power Supply: 230V AC, 50Hz,
- Power Consumption 160W, 0.6A
- Weight: 79kg (114kg with optional cabinet)
