Overview

Compatible with all EX-Series PLCs, Maple Systems offers twelve MLE I/O expansion modules (nine digital and three analog). Customize your PLC to maximize functionality while minimizing unnecessary costs. Up to 16 expansion modules can be connected to an EX-Series PLC for a maximum of 256 additional I/O points.

Analog Modules

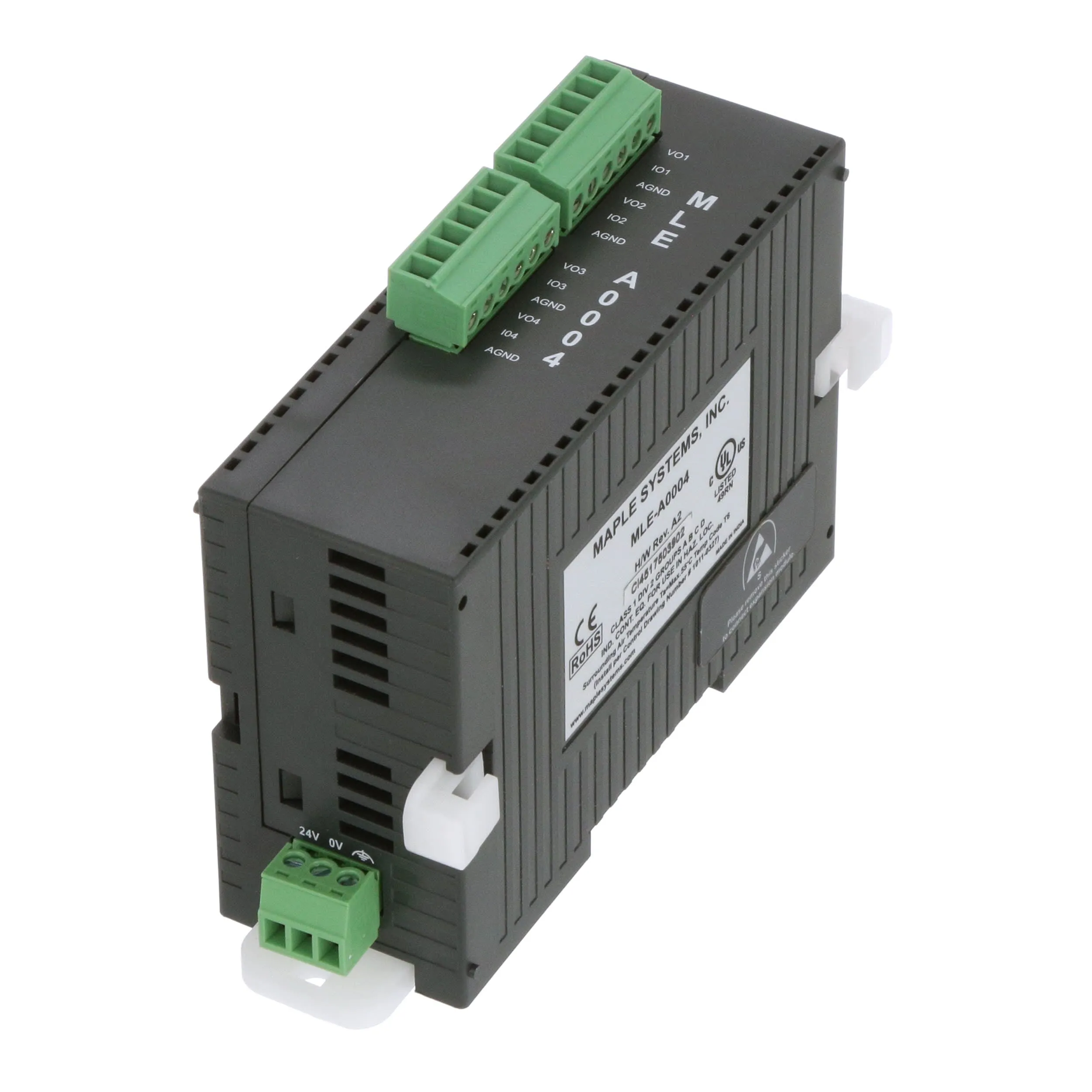

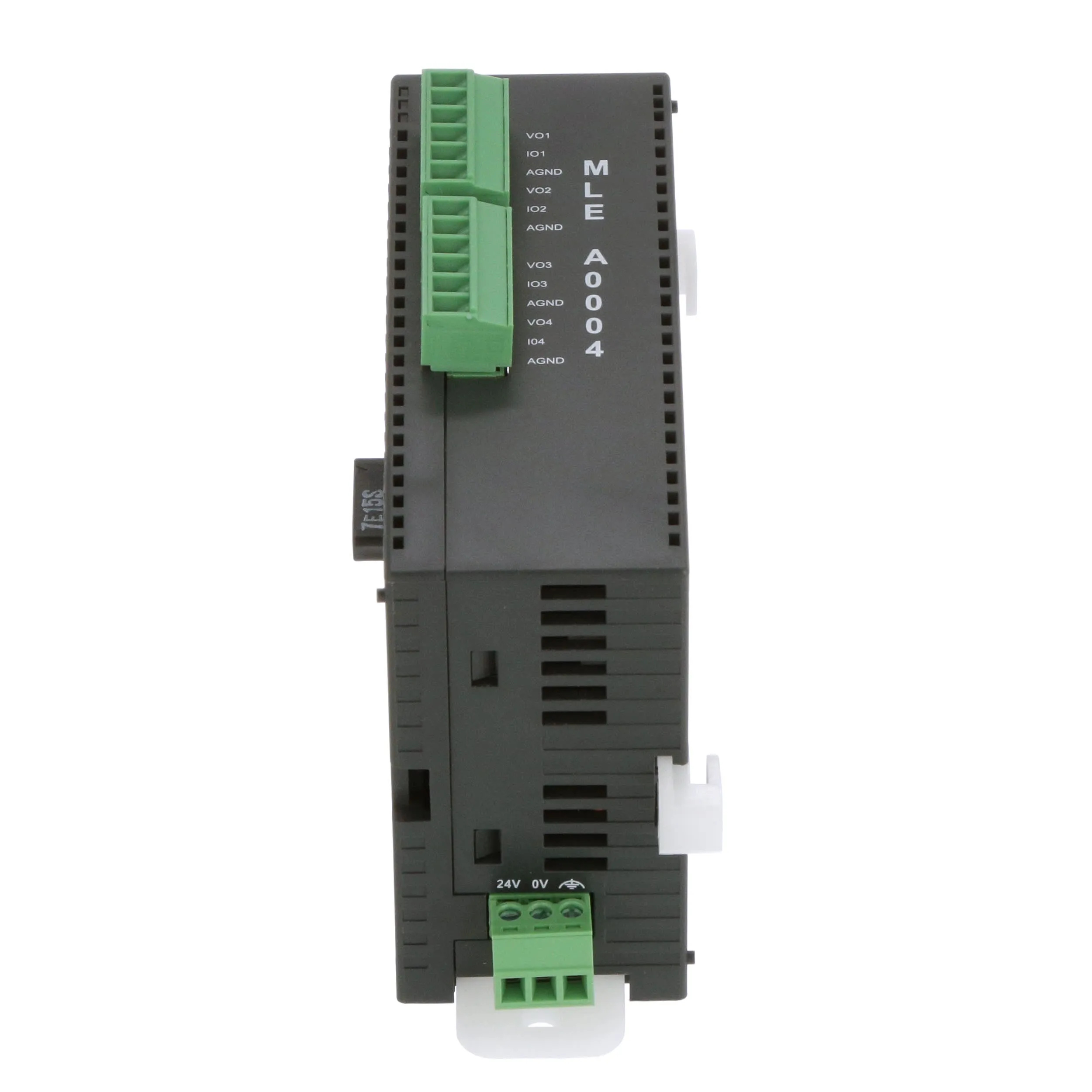

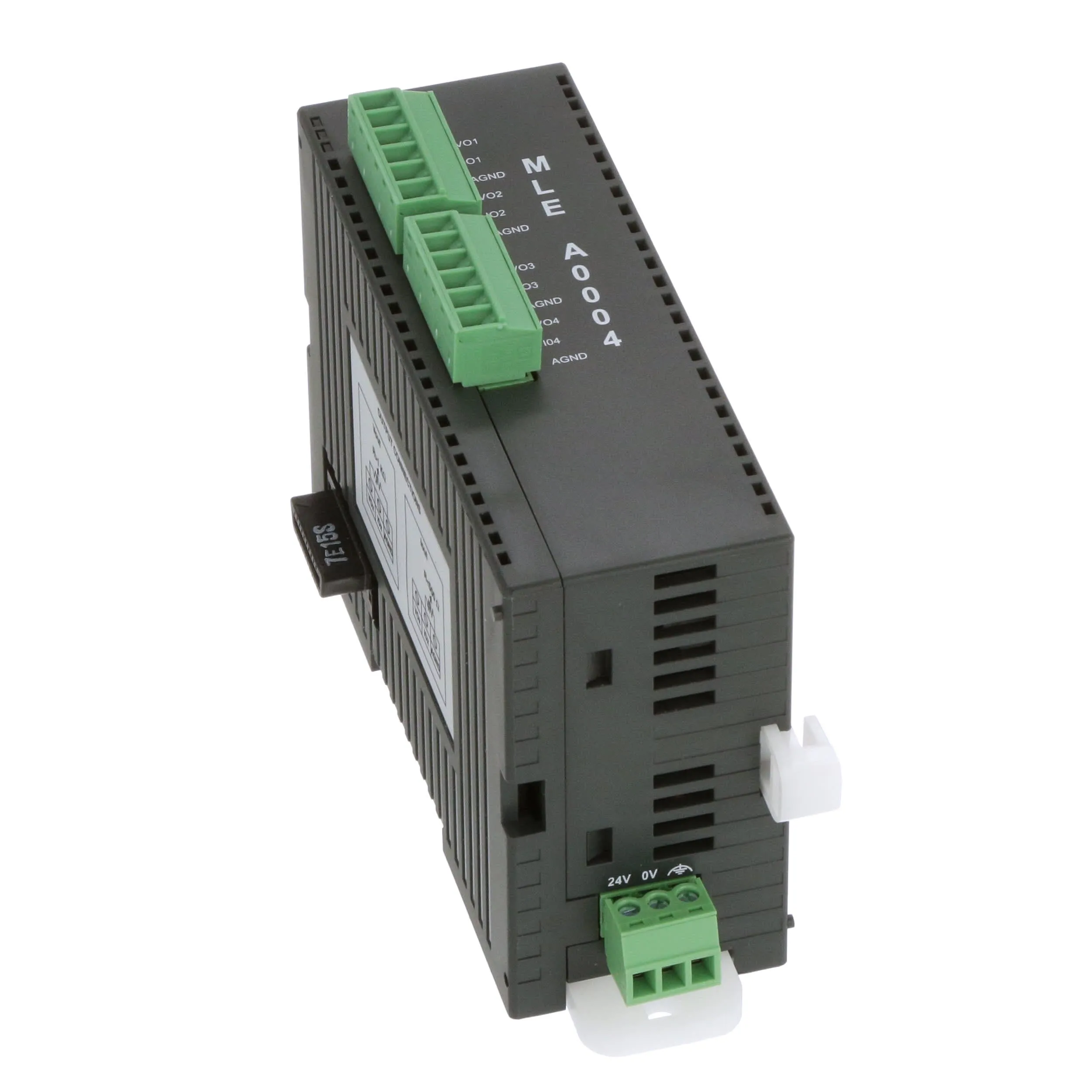

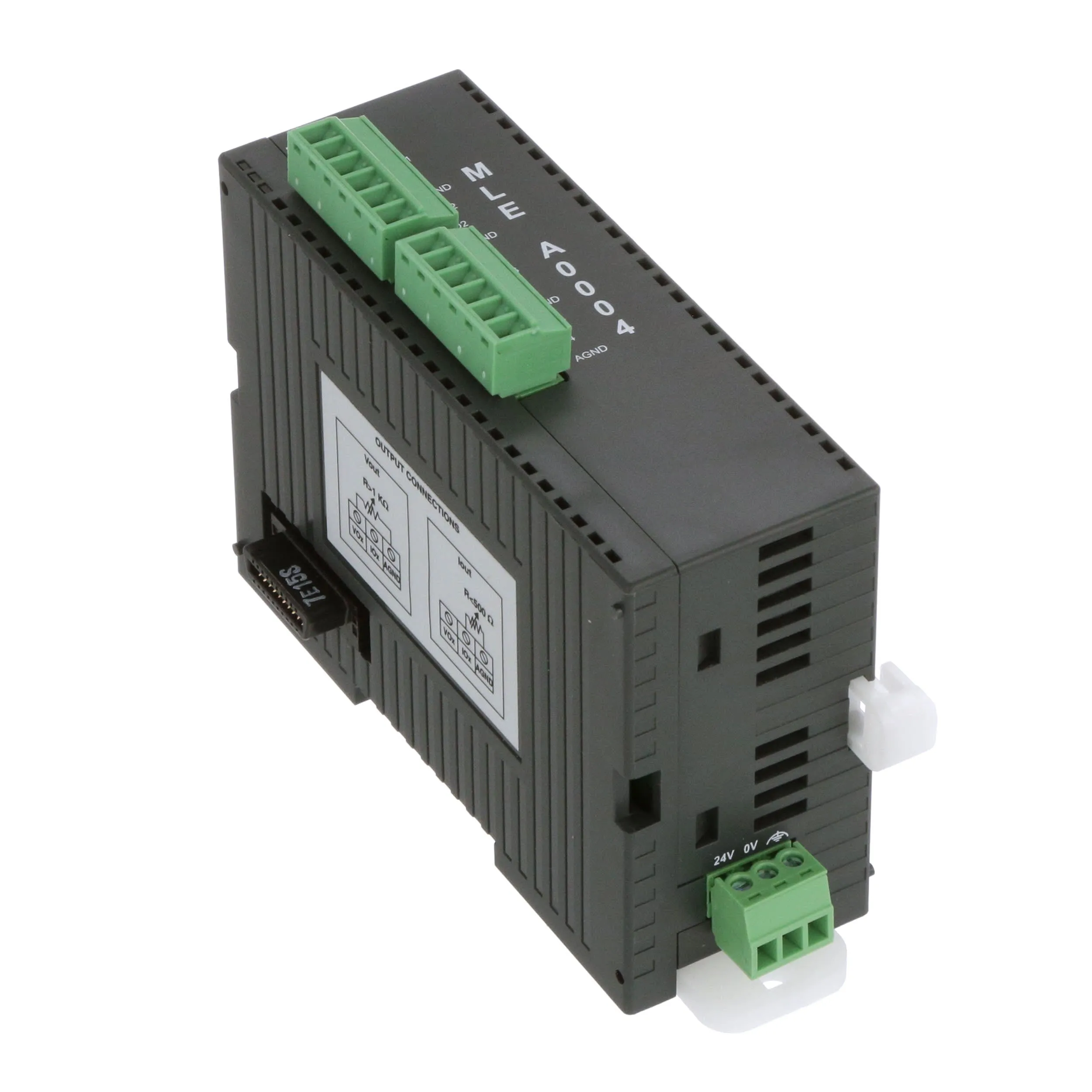

EX-Series analog I/O modules (16 bit resolution) support as many as eight analog inputs, four analog outputs, or a combination of analog I/O. These modules support:
0-10 V or 4-20 mA inputs or outputs
0-10 V, 1-5 V, 0-100 mV, or 0-50 mV inputs
0-10 V or 4-20 mA outputs
Support for RTD PT100 (Alpha 1 & Alpha 2) temperature inputs
Support for Thermocouple (types B, R, S, E, J, K, N, and T) temperature inputs
