Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | VAL-CP-3S-175 |
| Clamping Voltage | ≤1 kV |
| Current, Surge | 60 kA |
| Dimensions | 98.5mm L x 49.2mm W x 70mm H |
| For Use With | Industrial Equipment |
| IP Rating | IP20 |
| Mounting Type | DIN Rail Mount |

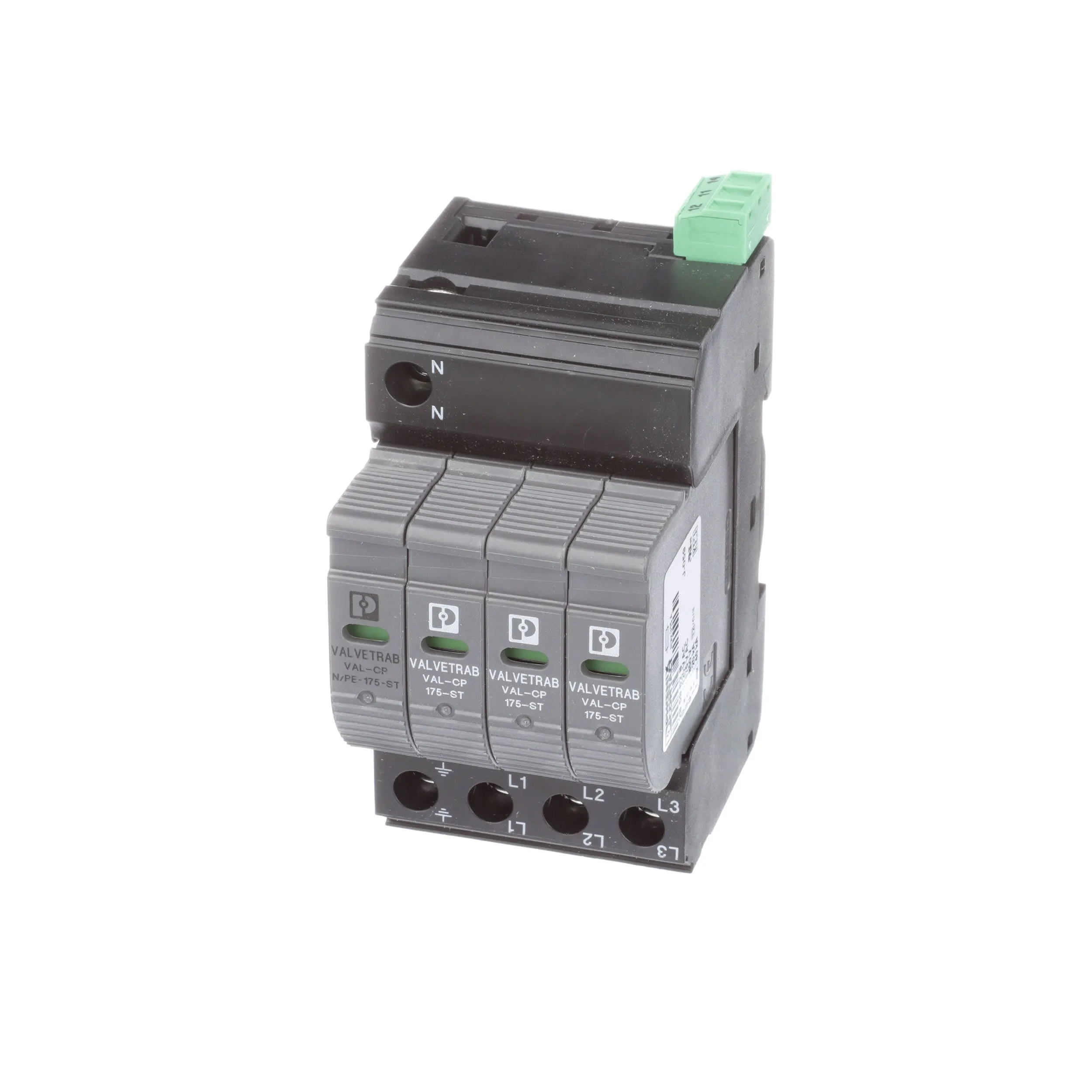

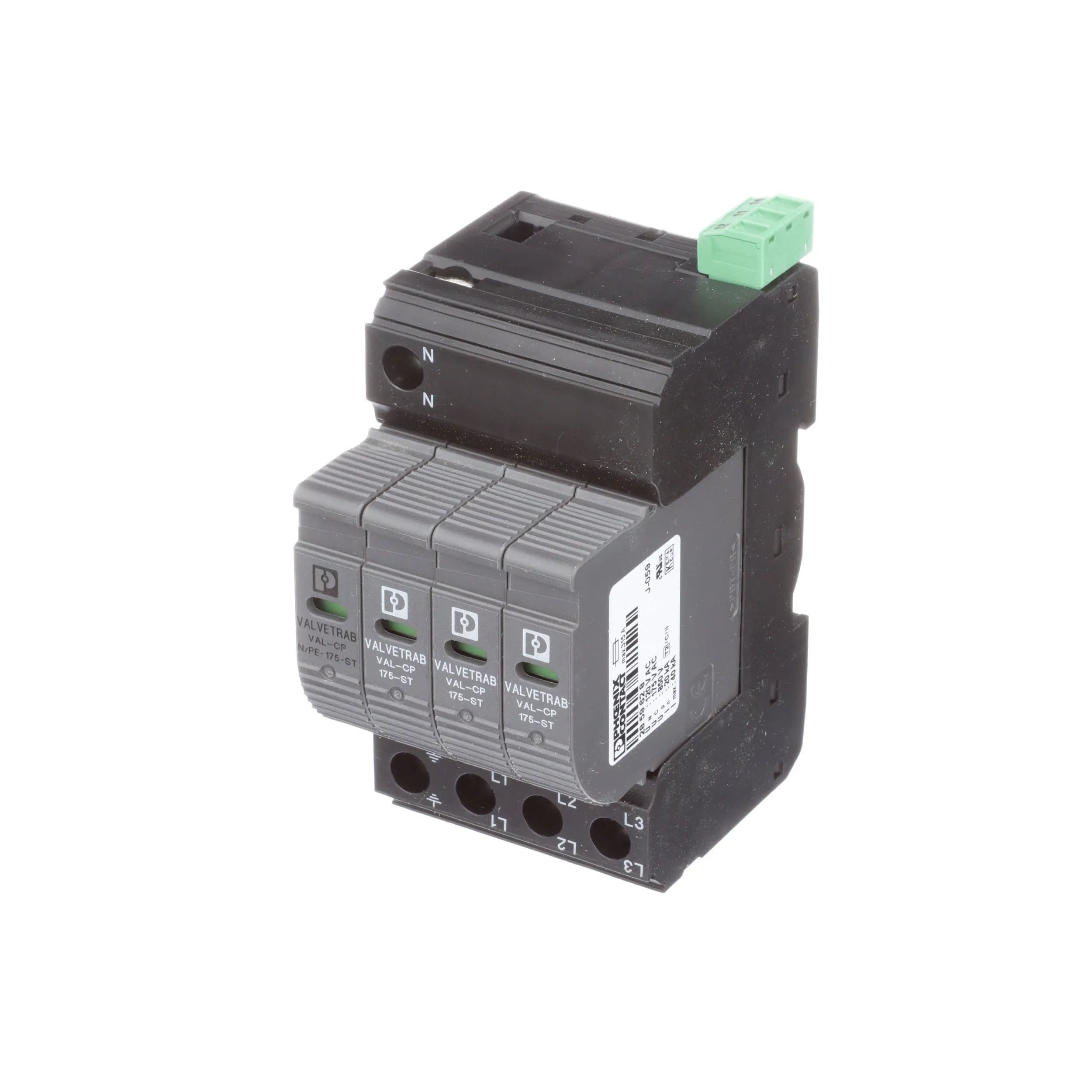

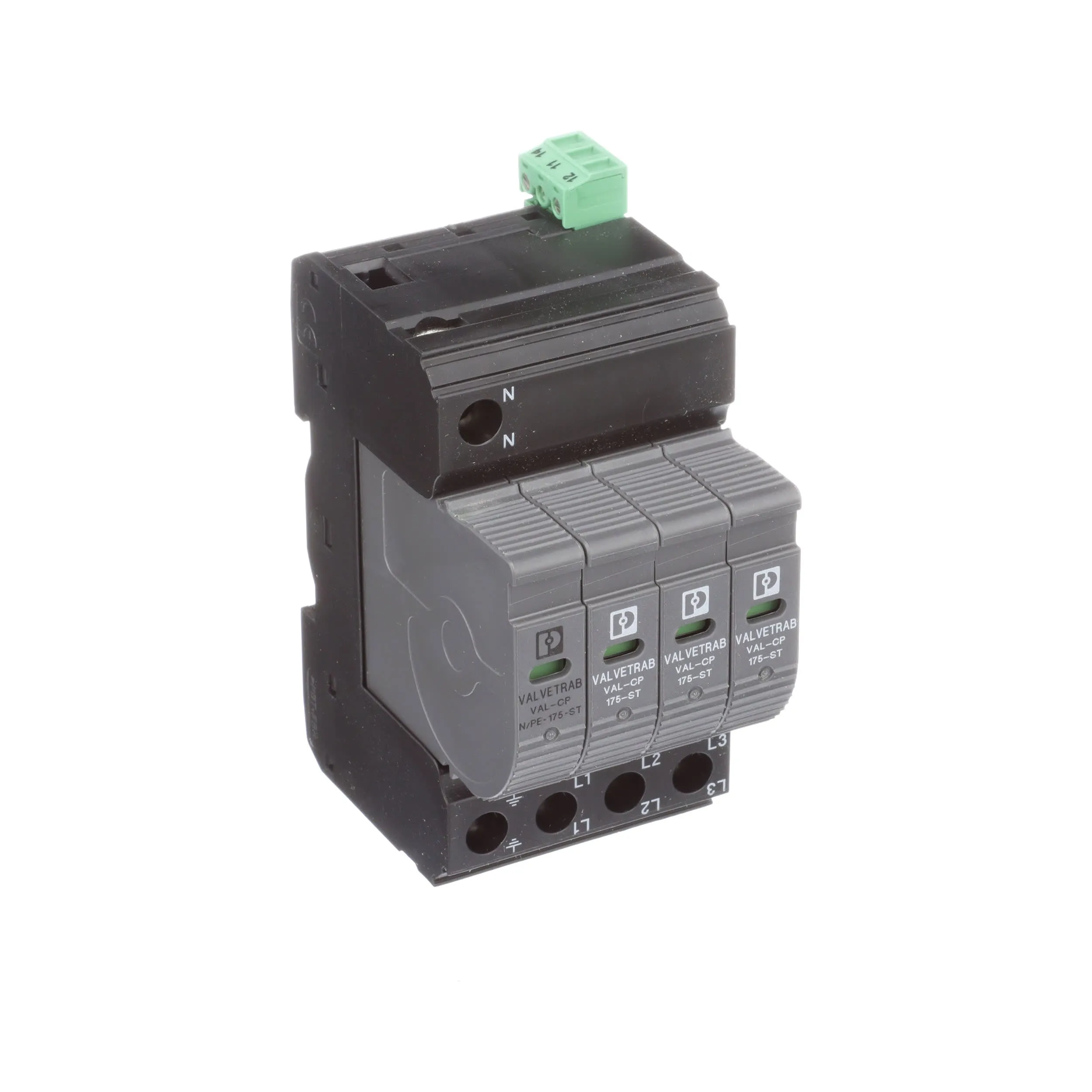

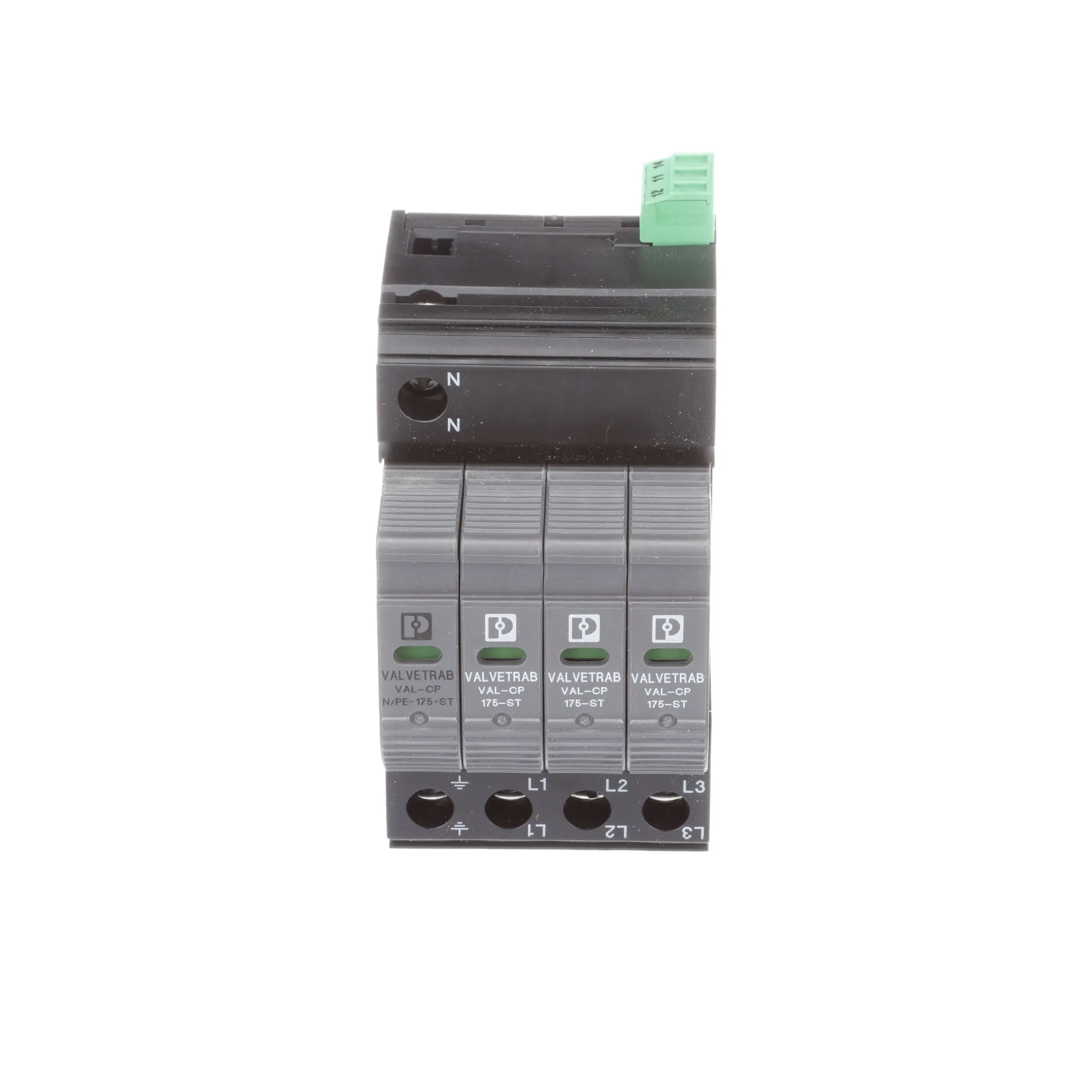

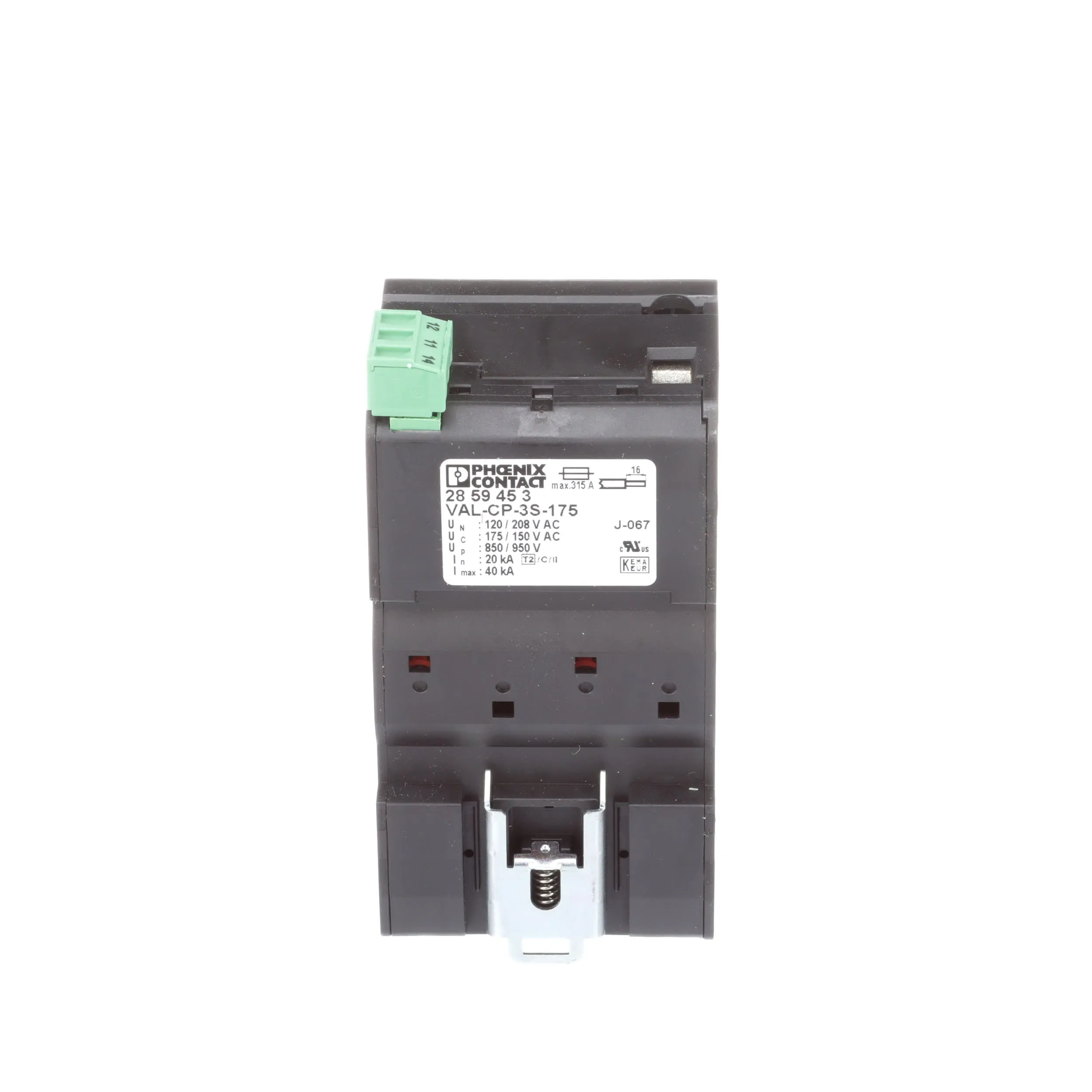

| Product Header | Pluggable Type 2 Surge Arrester |
| Series | |
| Supply Voltage | 120 VAC |
| Termination | Screw |
| Type | Three-Phase |
| UPC Code | 4046356045452 |
| Voltage, Operating | 250VAC ; 125VDC |
| Wire Size | 28-16 AWG |
Overview
Prevents surges from damaging sensitive equipment controlling critical processes. The protection can be mounted externally to the cabinet or internally on the DIN rail. Available in single- and 3-phase.
