Additional Features:

• Frequency range: 9 kHz to 2.6 GHz
• Impedance: 50 ohms
• Amplitude measuring range: -130dBm to 25dBm
• Resolution bandwidth: 30 Hz minimum
• Video Bandwidth: 1 kHz to 3.6 GHz

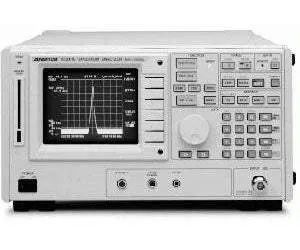

The Advantest R3361C provides synthesizer operation with high frequency accurate and stability. For specified setting conditions the total level accuracy is <1 dB. The digital functions provide great ease of operation and signal processing capabilities like top-class instruments. The Advantest R3361C has built-in tracking generator and a color display.

The Advantest R3361C uses a synthesized technique to cover wide frequency bands. This compact analyzer offers high-performance functions such as the 1 Hz resolution frequency setting function and 1 Hz resolution frequency counter function.

The R3361C is easy to operate because it incorporates unique features such as the user-defined functions and measuring window function. The analyzer is small and useful for measurement and analysis of all kinds, from maintenance to research and development.
