Product Details
＋

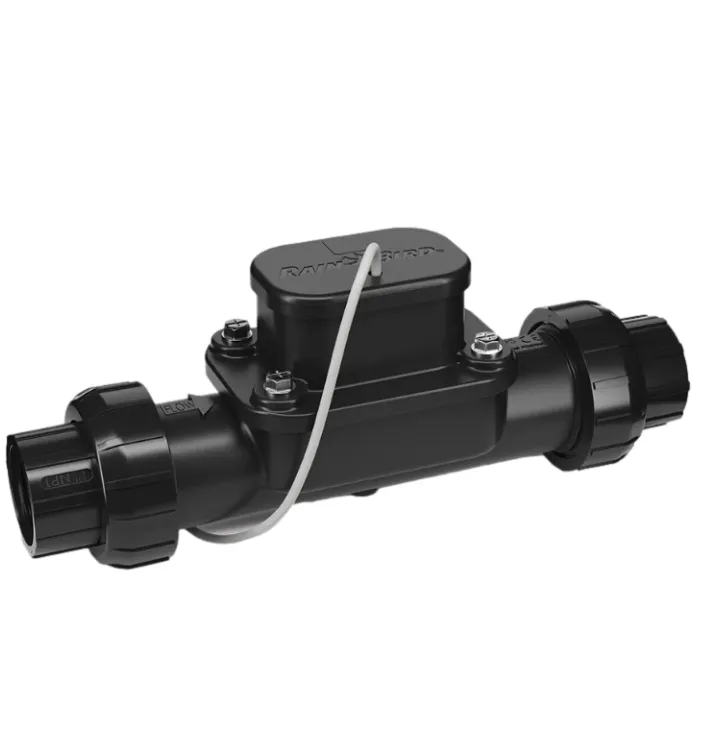

Help protect your customer's property and landscape with the FG100 Flow Sensor. Designed for residential and smaller commercial applications, the FG100 monitors irrigation and instantly identifies when there is a leak or line break so it can be addressed early.
Operating Specification:
- 500' / 152.4 m range on standard 18g irrigation wire
- Shielded wire is recommended for installations with wire runs that exceed 500' / 152.4 m, installation sites with significant wireless interference or to help protect against high-lightning locations.
- Minimum Flow: 3 GPM / 11.35 LPM
- Maximum Recommended Flow: 25 GPM / 94.63 LPM
- Maximum Flow: 35 GPM / 132.49 LPM
Dimensions
- Length: 9.25" / 234.95 mm
- Height: 3.31" / 84.07 mm
- Width: 2.56" / 65.02 mm

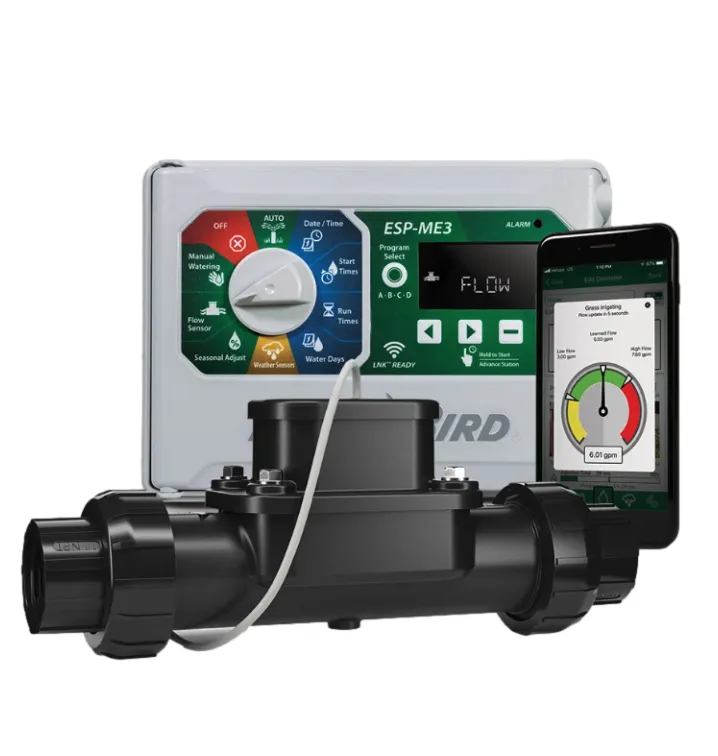

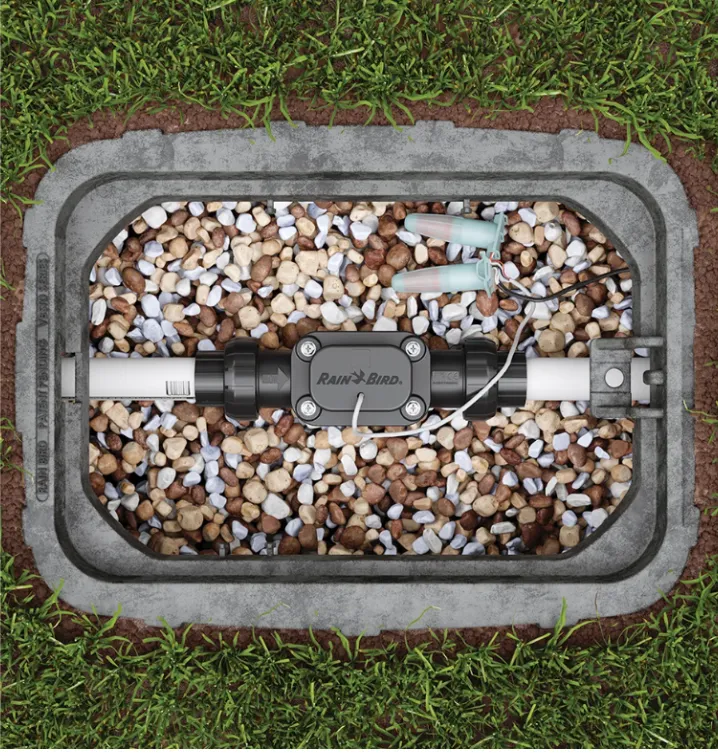

The FG100 is compatible with 18g irrigation wire for easy installation and winterization capabilities so it can stay in the ground all year. The FG100 pairs with the ESP-ME3 Controller. Now you can check system health from anywhere with the Rain Bird Mobile App available for iPhone and Android, when adding the LNK2 module.
