Name: RS Pro 286721
SKU: 993452

Product Details ＋

Product Attribute	Attribute Value
Accessory Type	Gland
Alternate Mfr Part Number	XR-074-RS
For Use With	Temperature Sensor
Shop By	Factory Choice
Standards	RoHS Compliant
UPC Code	5056070978942
Warranty	3 Year Warranty

Overview

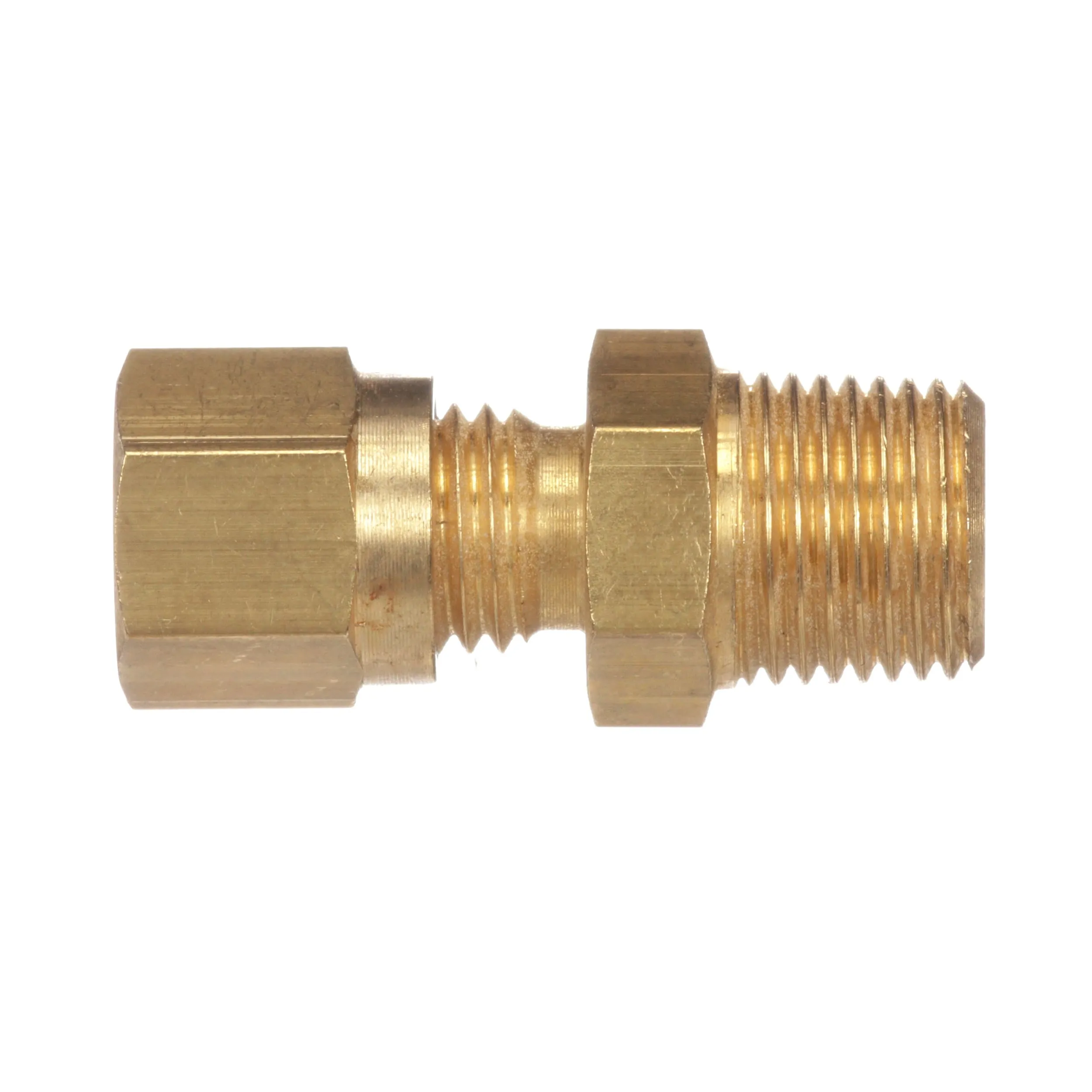

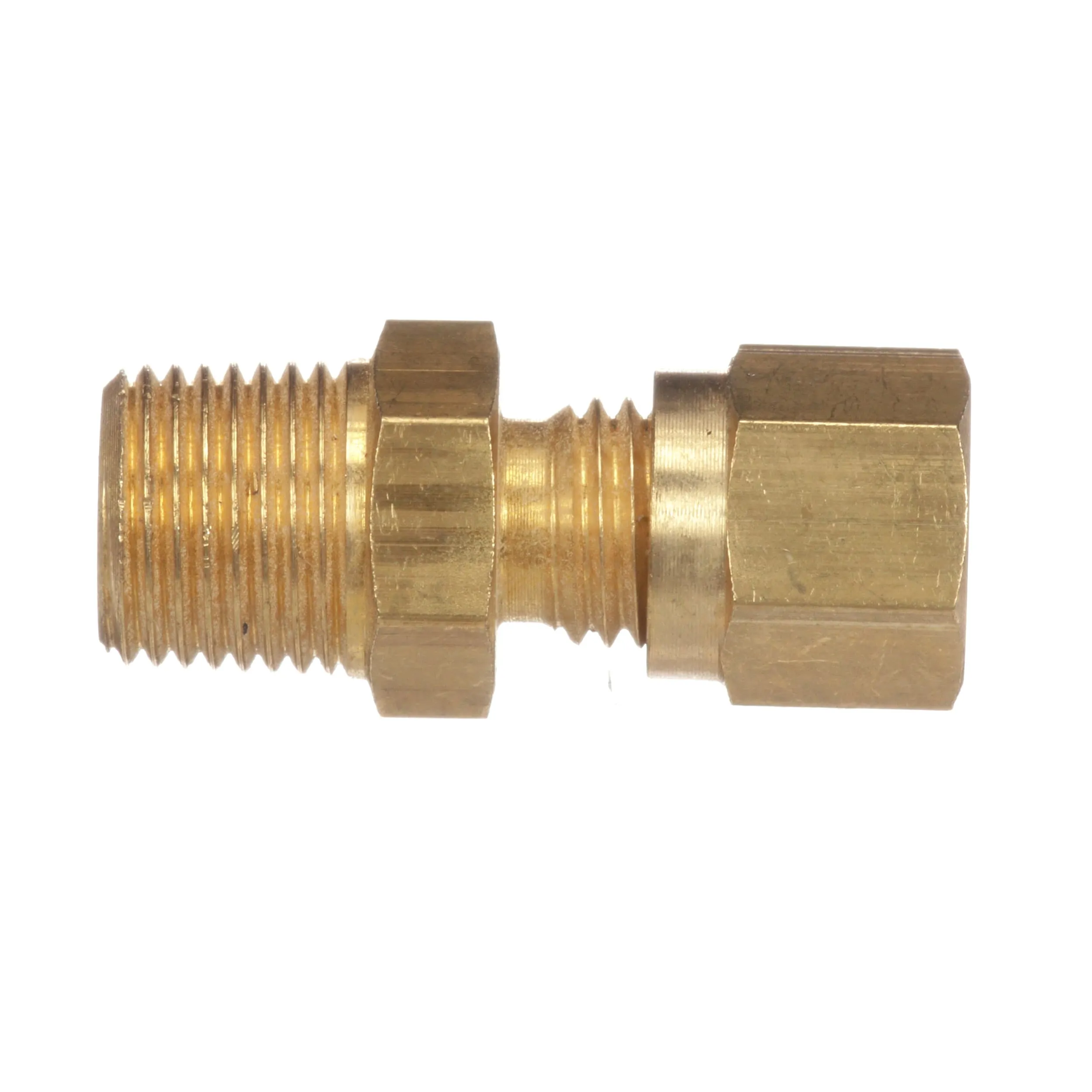

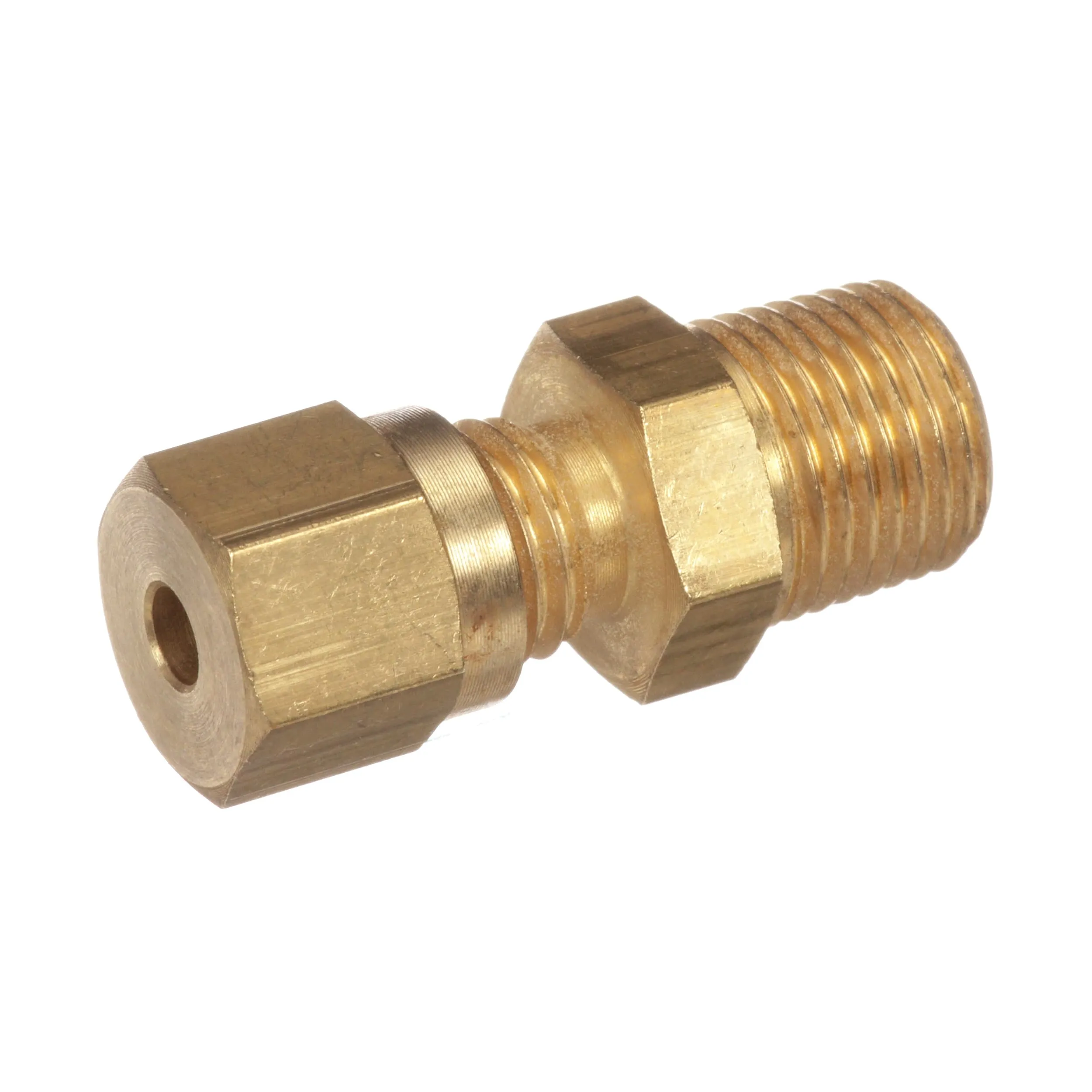

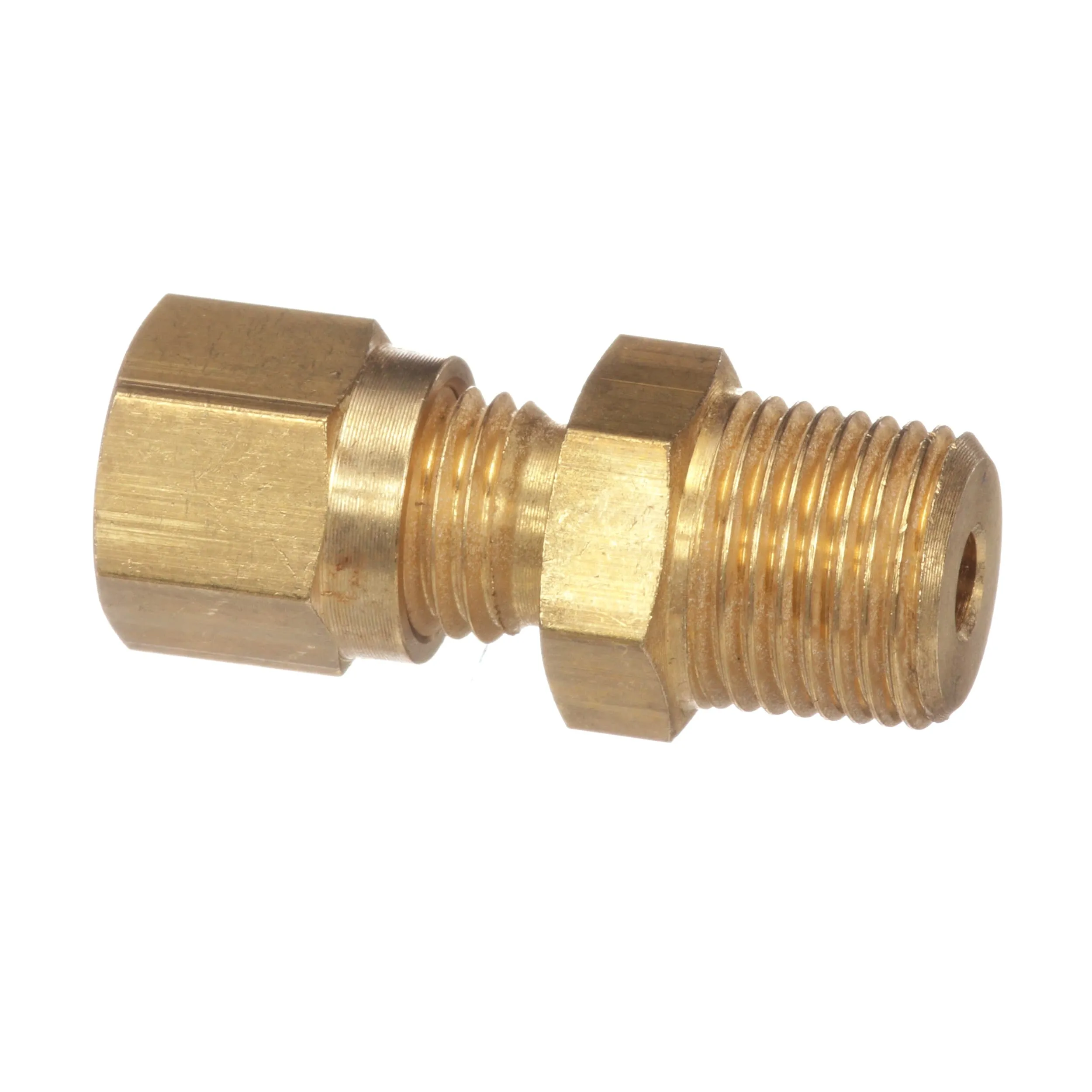

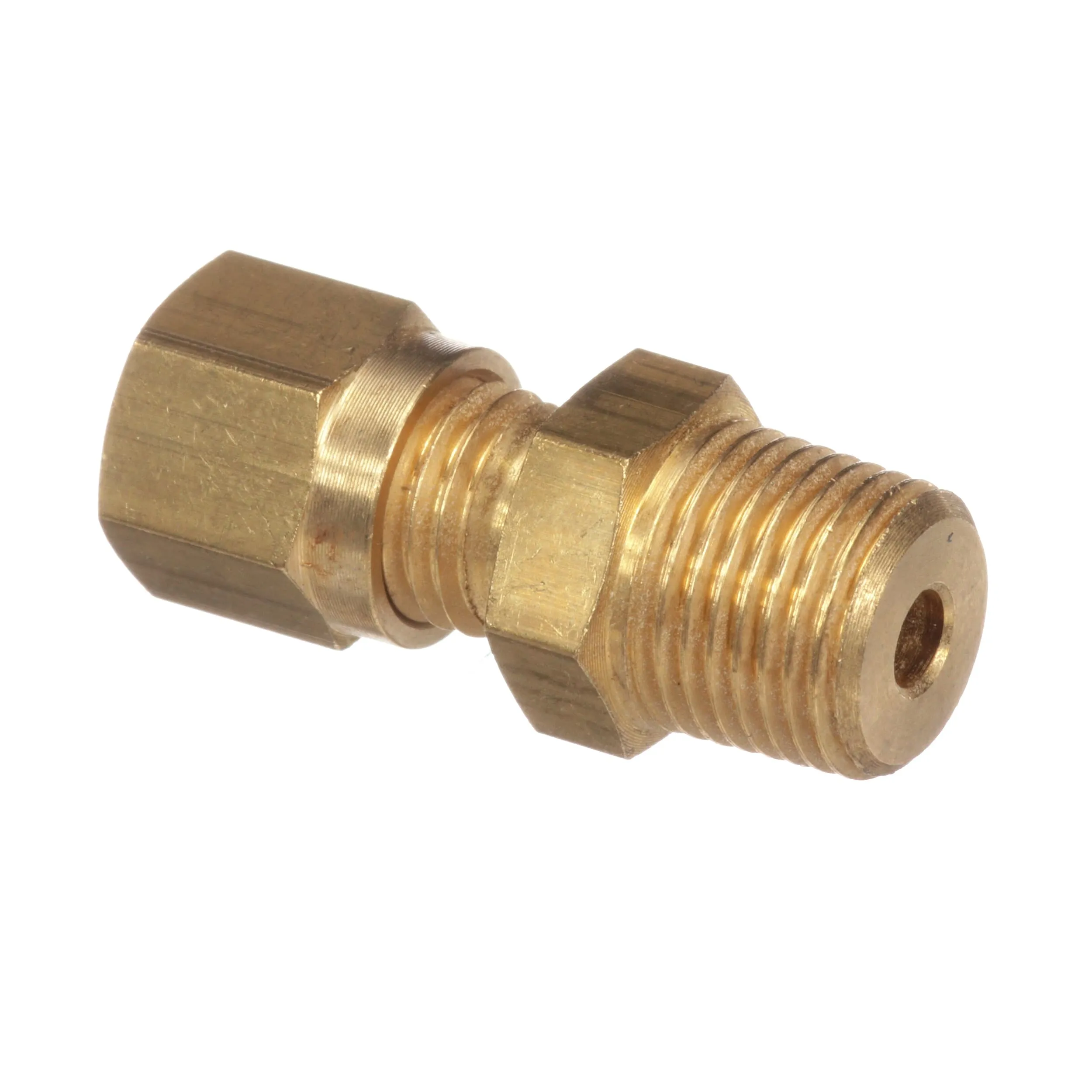

RS Pro 213573 Series — Brass Compression Glands | Parallel, Tapered & NPT Thread:

Corrosion-resistant BSP-threaded male thermocouple compression glands available to fit a wide range of temperature sensor probe sizes.

Features:

Male in-line brass and stainless steel compression type with nut & olive

1/8” , 1/4" & 1/2" BSP parallel or BSPT tapered threads available.

Suits 1.0mm, 1.5mm, 3.0mm, 4.0mm, 4.5mm, 6.0mm, 8.0mm, 1/8", 1/4" or 3/16" probe diameters

To suit a wide range of mineral insulated and other probe type sensors offered by RS

Male in-line brass compression type with nut & olive

½”, ¼” & 1/8” BSPT tapered thread to suit 1.5mm. 3.0mm, 4.5mm, 6.0mm, 1/8” & 3/16”

Brass locknuts also available
