Product Description
-

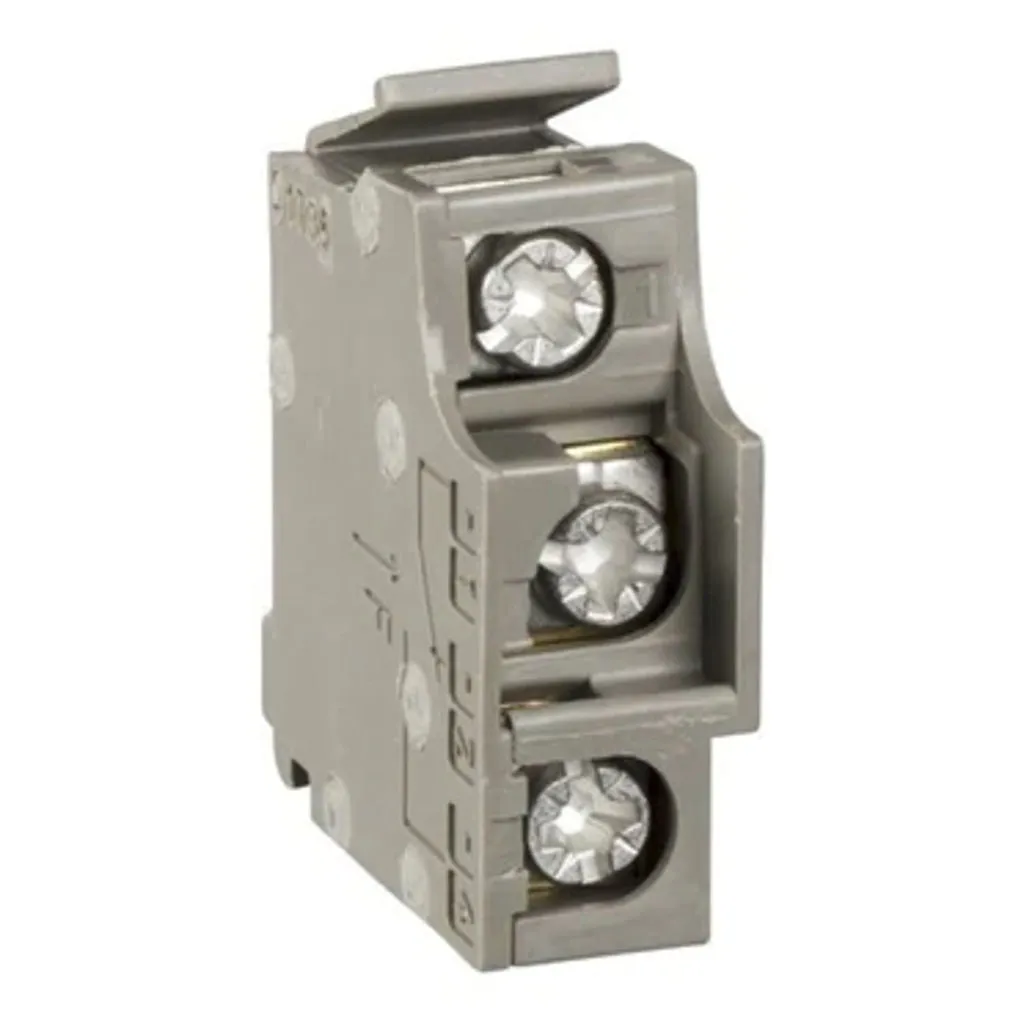

It is a single standard auxiliary contact that provides all the different indications remotely for ComPact NSX, ComPact NS, PowerPact Multistandard and EasyPact CVS circuit breakers
-
Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types
-
The remote status information for trip indication due to an earth fault (SDV) is used for ComPact NSX and PowerPact Multistandard
-
The contacts are installed in the device in dedicated slots
-
This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact
-
The rated current is 6A and the minimum load is 100mA at 24 VDC for utilization categories are AC12/AC15/DC12/DC14
-
Screwless connections with spring terminals provide a fast and reliable connection
-
The section of connected cables is between 0.5 mm² (AWG20) and 1.5 mm² (AWG16)
-
It complies with IEC 60947-5-1 standard
Product Specification
|
Brand |
Schneider |
|
Model |
EasyPact EZC |
|
Product Code |
29450 |
|
Product Type |
Auxiliary Contacts |
|
Color |
Gery |
|
Device Short Name |
OF SD SDE SDV |
|
Reference |
EZC 400/600 |
|
Signal Contacts Composition |
1 No/Nc |
|
Auxiliary Contacts Type |
Standard |
|
Auxiliary Contacts Operation |
Early-Break Early-Make |
|
Mounting Mode |
Clip-On |
|
Minimum Load |
100 Ma At 24 V |
|
Warranty |
As Per Manufacturer Terms and Condition |
