Versatile, Dependable, and Accurate Resistance Based Constant Monitor System
- Monitors: Two wrist straps; Two work surfaces; Two auxiliary grounds
- Accurate dual conductor resistance monitoring technology
- Ultra-low voltage signal
- Conductive ESD-safe case
- Audible and visual alarms
- Calibration certificate included
- For use with Dual Wire Wrist Straps
The RangerPRO constant monitor is the premiere workstation grounding system available. A continuous pulse of an ultra-low voltage signal measures the electrical resistance of two wristbands, two work surfaces, and two auxiliary grounds simultaneously and alarms if there is a problem.

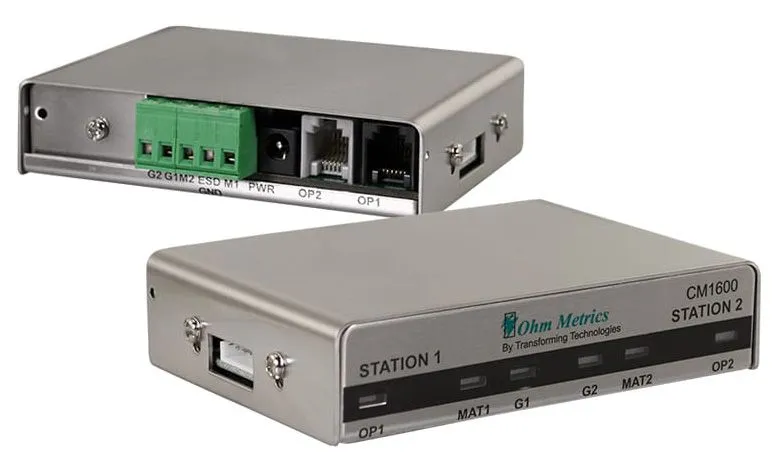

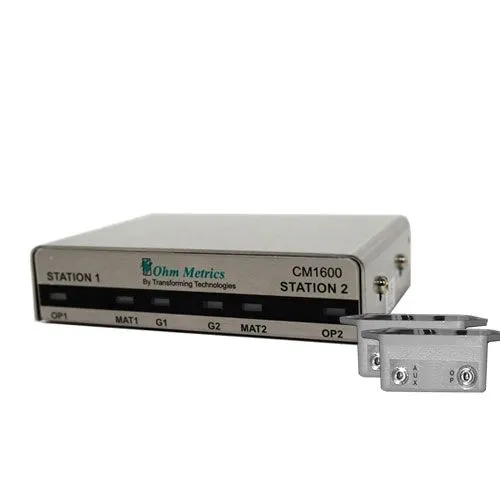

The RangerPRO is an extremely sensitive and reliable ground monitoring instrument. Audible and visible alarms are triggered if the operators resistance exceeds 35 megohm . Low resistance can also triggers an alarm event. Mat alarm limits are set at 100 meg ohm. The CM1600 packaged in a stainless steel case with two wrist strap jacks.

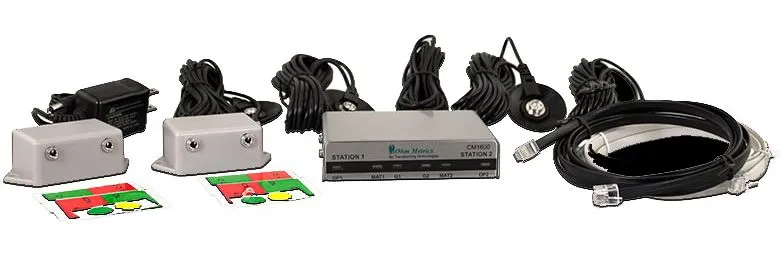

The RangerPRO saves time by eliminating the time-consuming testing of grounding products. The system uses special dual wire wristband sets that contain two independent elements which provide fail-safe protection. The series includes both fabric and metal wristbands paired with cords in either 5', 10', or 20' lengths.
Meets or exceeds requirements of ANSI ESD-S20.20 and ESDA Standard 1.1-2006
Operator Presence Check:
The RangerPRO can be outfitted with the Cyclops Remote Sensor that detects the presence of an operator and alarms if a wrist strap is not connected to prevent ungrounded handling of ESD susceptible items.
Alarm Signals:
The RangerPRO works with light towers, sirens, and other devices to enhance the signal of a failure. Pair the unit with the CM-RELAY to integrate with a signal (check with the manufacturer of your signal for compatibility.)
Calibration:
The RangerPRO is factory calibrated and does not require annual re-calibration. It is recommended to verify calibration with the CM2015PV periodic verification meter at least once a year. Download the RangerTWO calibration statement for your compliance program.
Additional information
- Weight: 0.5 lbs
- Dimensions: 4" x 1" x 3"
- Type: Dual Wire Resistance
- Capabilties: Two Wrist Straps, Two Worksurface, Two Aux Grounds
- Voltage: 0.2v (200mV)
- Power Supply: 7-15 VDC, 100mA
- Alarm Limits: Wrist Strap: 1.8 megohm (Low Resistance) 35 meg ohm (High Resistance)
- Worksurface: 100 meg ohm.
